SG-LOK products are used to connect and control fluids in tubing and piping systems across various industries.

#

Hex Ball Valves

  • Material
  • SUS 316L
  • Size
  • 1/4” ~ 1” Tube OD
  • Max Pressure
  • 1,000psig @38℃
  • Temperature
  • - 17℃ ~ 232℃
  • Others
  • Handle Option : Self Locking
    2,000psig with special Seat
Catalogue Download
#

Clean Ball Valves (Oil-Free)

  • Material
  • SUS 316L
  • Size
  • 1/4” ~ 1” Tube OD
  • Max Pressure
  • 1,000psig @38℃
  • Temperature
  • - 17℃ ~ 232℃
  • Others
  • 2,000psig with special Seat
Catalogue Download
#

Key Lock Ball Valves

  • Material
  • SUS 316L
  • Size
  • 1/4” ~ 1” Tube OD
  • Max Pressure
  • 1,000psig @38℃
  • Temperature
  • - 17℃ ~ 232℃
  • Others
  • Handle : Key Locking
Catalogue Download
#

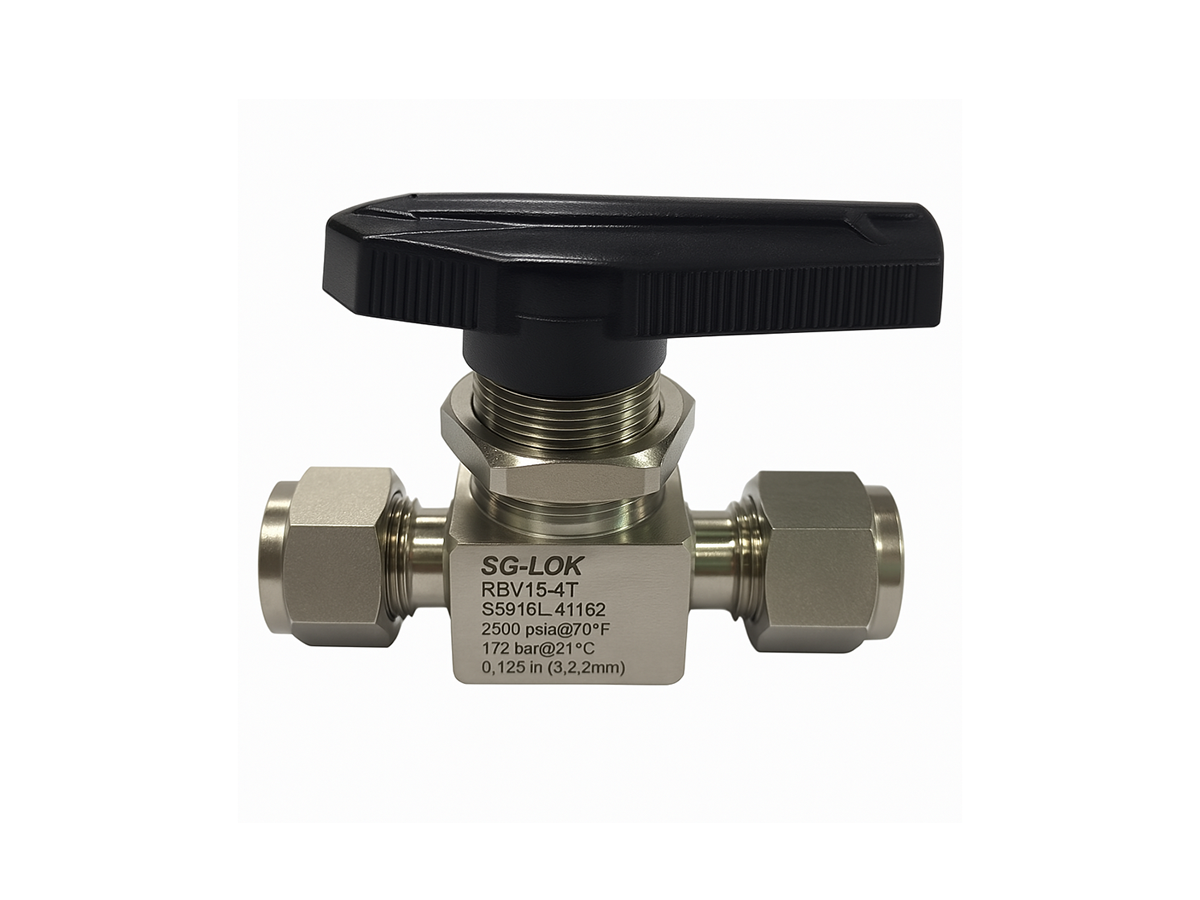

Rectangular Ball Valves

  • Material
  • SUS 316L
  • Size
  • 1/4” ~ 3/4” Tube OD
  • Max Pressure
  • 3,000psig @21℃
  • Temperature
  • - 10℃ ~ 65℃ PTFE Packing
  • Others
  • 1/2“, 3/4“ ... 2,500psig
    Orifice 3.2 … 2,500psig
Catalogue Download
#

Needle Valves

  • Material
  • SUS 316L
  • Size
  • 1/4” ~ 3/4” Tube OD
  • Max Pressure
  • 5,000psig @38℃
  • Temperature
  • - 54℃ ~ 232℃
  • Others
  • ~ 232℃ with PEEK Packing
Catalogue Download
#

Check Valves

  • Material
  • SUS 316L
  • Size
  • 1/4” ~ 1” Tube OD
  • Max Pressure
  • 3,000psig @21℃
  • Temperature
  • - 20℃ ~ 190℃
  • Others
  • Cracking 1/3, 1psig
Catalogue Download
#

Manifold Valves

  • Material
  • SUS 316L
  • Size
  • Inlet 1/2“ F, Outlet 1/4“ F
  • Max Pressure
  • 6,000psig @38℃
  • Temperature
  • - 54℃ ~ 648℃
  • Others
  • 2, 3, 5 Valve, Block / Flange
Catalogue Download
#

Double Block & Bleed Valves

  • Material
  • SUS 316L etc.
  • Size
  • 1/2” ~ 2” Tube OD
  • Max Pressure
  • 150# ~ 6,000psig @38℃
  • Temperature
  • - 57℃ ~ 550℃
  • Others
  • PTFE, PEEK etc.
Catalogue Download
#

Clean Bal Valves (A Sizes)

  • Material
  • SUS 304L / 316L
  • Size
  • 15A ~ 100A
  • Max Pressure
  • 220psig @38℃
  • Temperature
  • - 10℃ ~ 80℃
  • Others
  • Surface : AP, MP, BA, EP
    2-Piece, Oil-Free
Catalogue Download
#

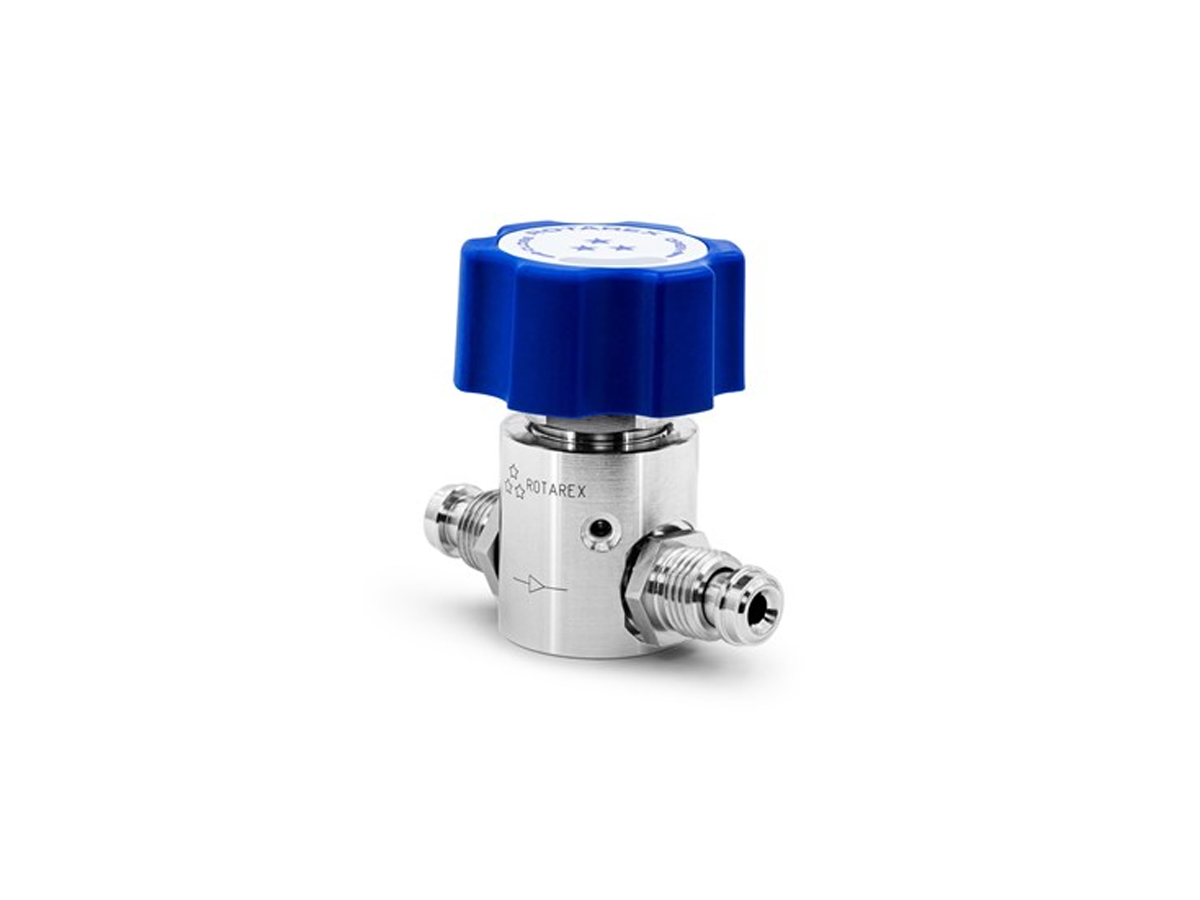

UHP Diaphragm Valves

  • Material
  • SUS 316L
  • Size
  • 1/4“ ~ 3/4” Tube OD
  • Max Pressure
  • 145psig @38℃
  • Temperature
  • - 10℃ ~ 80℃
  • Others
  • Manual, Pneumatic
    Surface : BA, EP
Catalogue Download
#

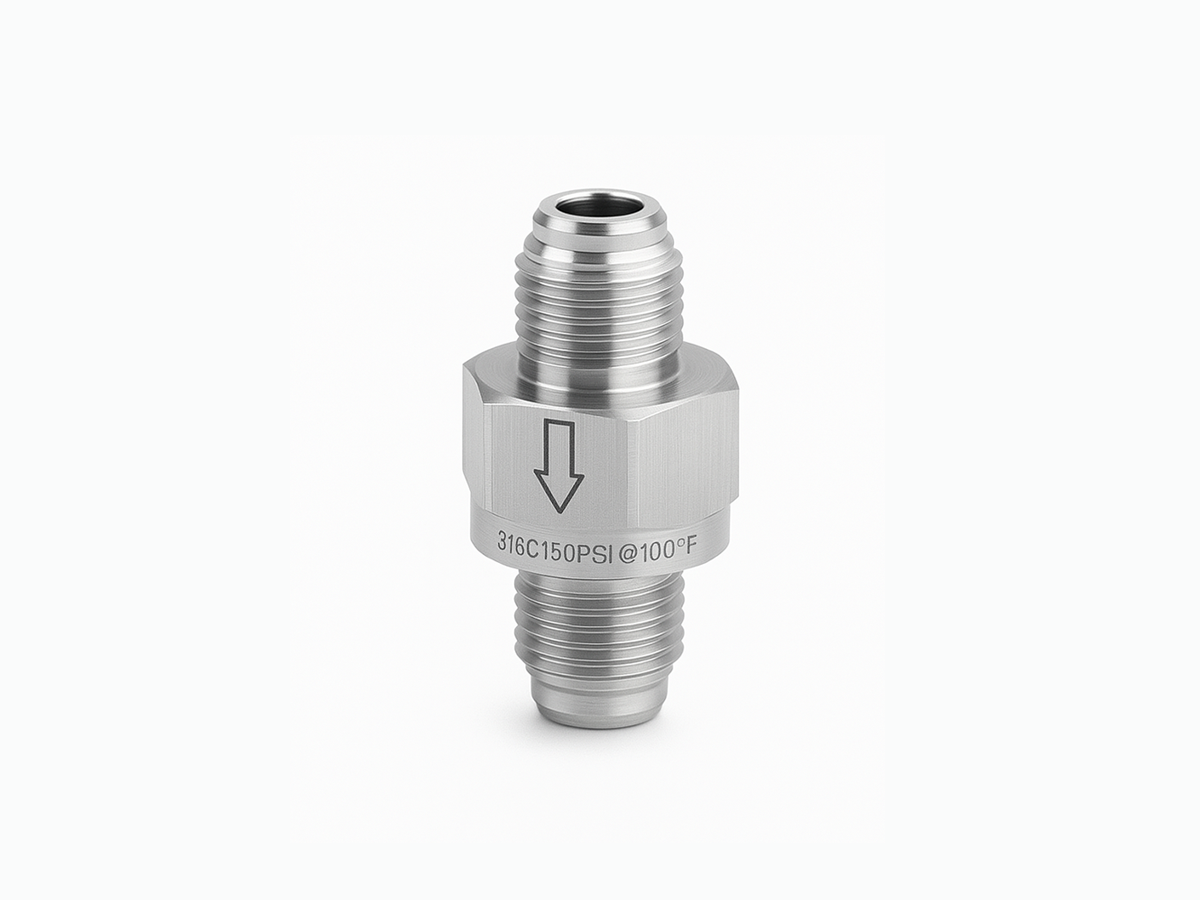

UHP Check Valves

  • Material
  • SUS 316L
  • Size
  • 1/4“, 1/2"
  • Max Pressure
  • 3,000psig @38℃
  • Temperature
  • - 10℃ ~ 80℃
  • Others
  • Surface : BA, EP
Catalogue Download
#

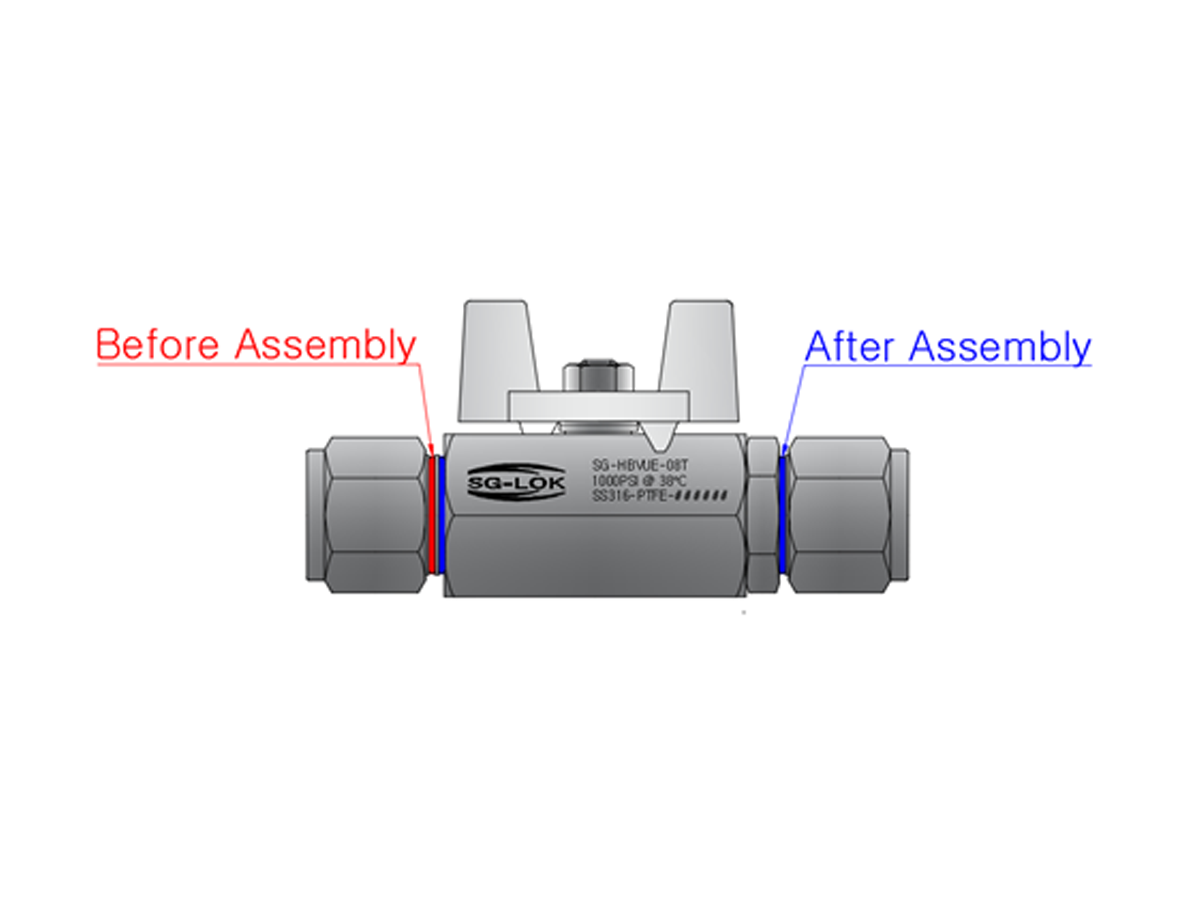

Eye Check Ball Valves

  • Material
  • SUS 316L
  • Size
  • 1/4“ ~ 1”
  • Max Pressure
  • 1,000psig @38℃
  • Temperature
  • - 17℃ ~ 232℃
  • Others
  • Ring : Silicone
    Color : Red, Blue
Catalogue Download
